Mesh Belt Screw Carburizing Heat Treatment Furnace
Tips：We have Professional R&D engineer, Customized furnaces as your required is welcome.
Brief Introduction:
The production line is a continuous operation furnace that can perform automatic feeding. Applicable to small hardware, hard film quenching; hardware parts industry (clip, knife, nail, shoe core, nail clippers, chain, lock hook, etc.); light textile machinery for thin layer carburizing, quenching and other continuous heat treatment.
Structure characteristics:
1. Conveyor mesh belt made from heat resistant alloy wire, guiding moving through furnace bottom plate support under the marching type transmission mechanism, to make sure mesh belt in a state of relaxation at high temperature , to improve the mesh belt life and running smoothness.
2. Muffle tank use heat resistant steel forming and welded together to be a sealed tank after stamping, equipped with gas curtain pipe at muffle mouth , has blanking port and mesh belt at the end of muffle tank , mesh belt back channel is equipped with water cooling and water seal, ensure good sealing of the furnace and gas consumption is small.
3. Mesh belt speed can be adjusted through mechanical stepless speed regulating motor.
4. Blanking channel have oil curtain mechanism, smoking mechanism, oil mixing mechanism and heat exchange device, can ensure the realization of the heat treatment process.

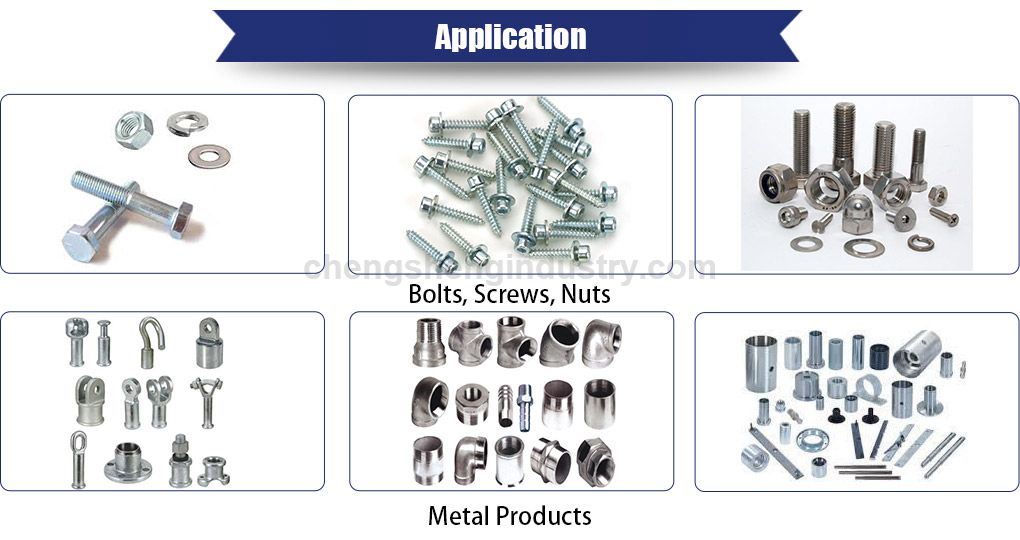

Can complete heat treatment process of the following products:
1. Standard parts industry self tapping screw, drilling screw, wall screws, wood screws and other carbon heat treatment. High tensile screws, inner hexagon screw, 5-8.2 screw, nut, etc quenching and tempering heat treatment;
2. Adjustable wrench, open end wrench, box spanner, hexagon wrench, screwdriver, sleeve, pliers, jack, such as hand tools quenching and tempering heat treatment;;
3. Auto screw, shaft, hub, connecting rod, car lock ring, piston pin, locomotive screw, top and bottom plug, size bowl, drive shaft, the five group, front fork group, as group, fast valve group and so on automobile, motorcycle, bicycle parts of carburizing heat treatment;
4 Folder, blade, file, the nail in the four corners, lighters, shoes core, hair clips, pen holder, etc quenching and tempering heat treatment;;
5. Steel nails, nail clippers, hook, chain, hook locks and other hardware parts carburizing heat treatment;
6. Textile machinery parts, bearing parts of carburizing and quenching and tempering heat treatment;
