Quenching 40Cr chain with mesh belt furnace

Product Name: Chain

Material: 40Cr

Requirements: quenching 42-46hrc

Heat treatment equipment: jh802 + jh806 mesh belt furnace production line

Process: 30ml / min atmosphere protection for each route of methanol, zone 1 790, zone 2 840, zone 3 850, zone 4 860, zone 5 860, zone 6 860 ℃, speed about 120 minutes (from furnace feeding to oil feeding time), 60-80 ℃ oil cooling, start stirring, after cleaning, zone 1 250, zone 2 350, zone 3 410, zone 4 410 ℃ tempering for 120 minutes.

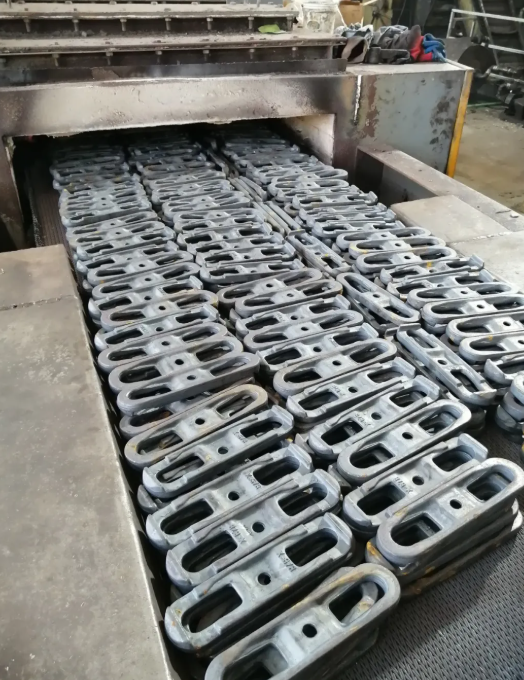

1. Place the products neatly on the mesh belt and heat them in the furnace

2. After oil quenching, the oil tank mesh belt is lifted up,

3. Measure the hardness after quenching

4. Enter the tempering mesh belt furnace for tempering after cleaning

5. Air cooling after tempering

6. Measure the hardness after tempering
